The TPI 717R Flue Gas Combustion Analyser is a state of the art, easy to use analyser designed not only to display and calculate the required readings from a flue but also to cover most of the other desirable parameters associated with appliance installation and maintenance.
- Combustion Efficiency Analyser: Measure O2, CO, and flue temperature. Calculate efficiency, excess air, CO2 & (CO/CO2) Ratio.
- CO Analyser: Measure carbon monoxide in ambient air.
- Differential Manometer: +/- 150 mBar (0.01 mBar resolution). Great for tightness/let by or burner pressure testing.
- Differential Thermometer: Dual input K-Type thermocouple thermometer measures differential temperatures. Ideal for measuring & recording flow & return temperatures.
- H2 ready! EN50379 compliant
- Six Year Warranty
All of the features of the 709R plus:
Timed Let/By & Tightness Test
Timed CO Build-Up Room Test
Integrated Magnet
Calibration Due Countdown on switch on
Serial Number on Print-Outs
Next Calibration Due Date on Print-Outs

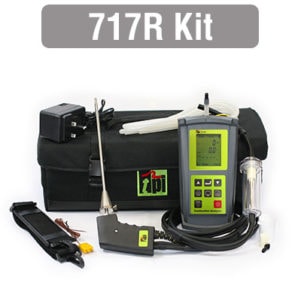

717R Kit With Standard Accessories:
TPI 717R Analyser
Rubber Boot (A765)
Soft Carrying Case (A768)
Sampling Probe (c/w Type “K” Thermocouple)
In-Line Water Trap Bowl Filter (c/w Spare Particle Filter) (A763)
Battery Charger (A766)
Mini In-Line Pump Protection Filter (c/w 5 spare filters)
Exhaust Spigot Removable (A764)
Pressure Tubing (2 x 1 metres)
GK11M Air Probe
Instruction Manual
£425 RRP exc. VAT

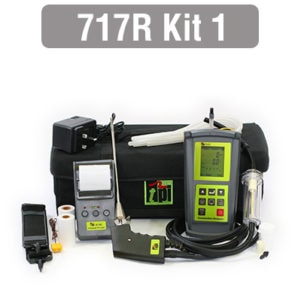

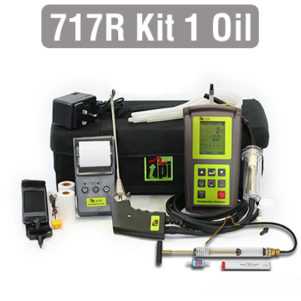

717R Kit 1: All Standard Accessories and includes:
A740 IR Printer
£530 RRP exc. VAT
The TPI 717R conforms to EN50379 and is suitable for engineers working with BS7967, the usage standard.
Serial Number & Next Cal Due Date are printed at the bottom of each print-out ensuring that you always know your readings have been taken with the correct in-calibration flue gas analyser giving you complete peace of mind.
HHIC: The Heating & Hotwater Industry Council made a recommendation that from April 2013 that the CO level & CO/CO2 (Ratio) reading in a flue is recorded when a boiler is commissioned and that this practise become mandatory from April 2014. Please click here for further details.
The recording of the CO level and Ratio reading will become a mandatory part of completing the Benchmark Form.
Combustion Performance Analysis (CPA1): From April 2012 it has been compulsory for all engineers to acquire CPA1 Assessment to prove their competency in using a Flue Gas Analyser. Please click here for complete details.
| Model 717R Features & Benefits | ||
|---|---|---|
| Feature | Benefit | |
| 10,000 ppm CO Sensor | Longer Life & Quicker Recovery Times after Combustion Tests | |
| In-Line Water Trap Bowl Filter |
Prevent additional servicing costs due to damaged sensors caused by water ingress |
|
| In-Line Mini Pump Protection Filter |
Prevent additional servicing costs due to blocked pump caused by dust/dirt ingress |
|
| Multi-Fuel | Not limited to the type of jobs you can accept to work on | |
| Soft Carry Case | Keeps your equipment & accessories together & secure in one handy place | |
| Diagnostic Software | Save time & money by preventing the need to return the analyser for unnecessary repairs |
|
| Readings Output to (Optional) IR Printer |
Keep permanent print-outs of recorded readings for your records & the customers | |
| 6 Year Warranty | Complete peace of mind over the life of the analyser | |
| CO Build Up Test Software |
Save time by having the analyser record the CO Build Up levels in a Room | |
| Tightness Test Software | Save time by having the analyser record the Test Pressure Readings | |
| Calibration Due Countdown |
Always be aware of when your 717R requires annual re-certification | |
| Model 717R Specifications | ||
|---|---|---|
| Instrument | ||
| Operating Temperature Range | 14°F to +122°F (-10°C to +50°C) | |
| Battery / Batery Life | Rechargeable Ni-MH / > 6 Hours | |
| Charger Input Voltage | 115V or 230V : 50/60 Hz AC | |
| Fuels | Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood, Bagasse |
|
| Pressure Ranges | mbar, kPa & inH2O | |
| Display | Backlit Graphic LCD | |
| Data Storage | 50 sets of readings, multiple pages | |
| Time and Date | 24 Hour Real Time Clock | |
| Dimensions | 200mm x 90mm x 60mm | |
| Weight | 500g | |
| Casing | Rubber Boot as Standard | |
| Switch Off | Failsafe | |
| Exhaust | Safety Spigot | |
| Conforms to | EN50379 | |
| Flue Temperature Probe | ||
|---|---|---|
| Construction | Pistol Grip with Stainless Steel Shaft | |
| Hose Length | 2500mm | |
| Insertion Length | 200mm | |
| ‘K’ Type Thermocouple Accuracy | +/- 0.3%, +/- 1˚C | |
| Maximum Temperature | 800°C | |
| Gases | Range | Resolution | Accuracy | |
| Oxygen | 0-25% | 0.1% | +/- 0.3% | |
| Carbon Monoxide | 0-10,000 ppm | 1 ppm | <20ppm +/- 3 ppm >100ppm +/- 5% |
|
| Carbon Dioxide (calculated) | 0-25% | 0.1% | +/- 0.3% | |
| Combustion Efficiency | 0-100% | 0.1% | ||
| Pressure Measurement | ||
|---|---|---|
| Selectable Ranges | mbar, kPa and inH2O | |
| Range | – 150 mbar to + 150 mbar | |
| Resolution | 0.01 mbar & 0.1 mbar | |
| Accuracy | +/- 0.5% fsd | |
Analyser Frequently Asked Questions
Can I use my analyser on Oil Fired Appliances?
Yes. Please ensure that the analyser is set to the correct fuel and that the additional oil filter (A773) is fitted. It is also recommended to use a smoke pump before performing any analyser test. NOTE: Do not use the A773 oil filter if an NO/NOx sensor is fitted
Can I use my analyser to perform Tightness Tests?
Yes. All TPI Flue Gas Analyser models have pressure which will allow all types of pressure testing to be performed; the 716 has in-built software which makes Tightness Testing even easier to perform.
Can I read Flow & Return Temperatures with a TPI Analyser?
Yes. All TPI Flue Gas Analyser models have Differential Temperature (Dual Inputs) which enables 2 temperatures to be taken at the same time and the difference calculated and displayed.
