9075 Wireless Accelerometer

The 9075 is a wireless accelerometer used to take vibration readings and send data via Bluetooth wireless communication.

The 9075 Wireless Accelerometer has Big Capabilities.

  • Remote Vibration Readings with the Free View App
  • Identify the vibration problem: unbalance, misalignment or looseness; in addition to the bearing condition

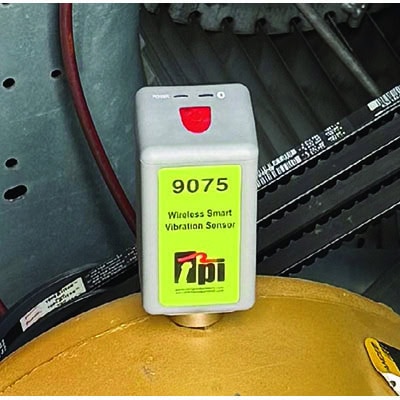

  • Place the sensor on the asset, potentially behind a safety gate, up a height or hard to reach areas, then stand back and see the readings in the palm of your hand.
  • Overall machine and bearing conditions: vibration values are displayed with colour-coded alarm levels for ISO values and Bearing Damage (BDU).
  • Identify complex issues: 800-line spectrum with zoom and cursor.
  • View Readings as ISO, BDU, Displacement and Total (g)
  • View the FFT, VA Bands, & Time Waveform
  • Create reports & share them using e-mail, or file sharing such as OneDrive, Google Drive, Dropbox etc…..
  • Wireless Charging
  • Upgrade Kits available to buy with Android Tablet running the Ultra III App or C-Trend Software Including Trending, Global Connectivity and much more!

Ultra III Android App

The 9075 is a wireless accelerometer used to take vibration readings and send data via Bluetooth wireless communication to an Android tablet running the TPI Ultra III app.

Used in conjunction with Ultra III software the 9075 features include:

  •  2/10Hz to 1kHz ISO standard for assessing Unbalance, Misalignment or Looseness
  • 1kHz to 10kHz BDU range for identification of Bearing Condition
  • High resolution (0.2 Hz) frequency spectra from 2 Hz to 10 kHz
  • Screen Cursors – Single, Harmonic, Moving Harmonic, Sideband, and Time/Frequency for waveform
  • Demod & Coast Down, Phase & Orbit Plots, Gap Voltage Display
  • Download Routes with Inspection points (with optional C Trend II PC software)
  • Clear, easy-to-read and navigate touchscreen
  • Wireless Charging
  • Battery – 2000mAh Lithium-Ion battery
  • Data transfer by Bluetooth
  • 2Hz to 10kHz Frequency Range
  • 100 to 51,200 Line Resolution
  • 108dB Dynamic Range
  • IP67 rated housing

UltraIII Manual Version 1_1
