All TPI manometers feature temperature compensation to ensure reliable, repeatable measurements. Over-pressure protection prevents sensor damage due to inadvertent pressure spikes. Wide input ranges and high resolution increases versatility and performance.

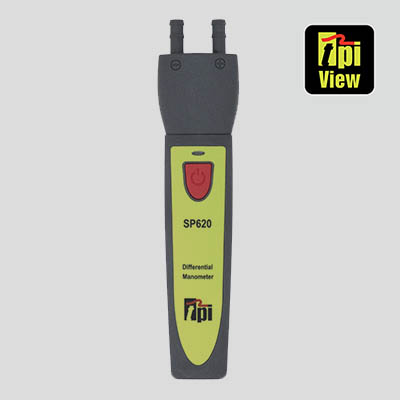

SP620 Differential Pressure Meter

Dual input differential manometer with +/- 60 inH2O input range. Use with TPI Smart Probe App to display pressure.

Use the TPI app to display real time readings in numeric and graph format. Save readings to a CSV file. The app allows the customer’s information to be stored and a report sent via email!

The 605 vacuum gauge measures vacuum in Microns for accurate evacuation of refrigeration systems.

Single input vacuum gauge. 12,000 to 15 micron measurement range. 300 PSI over pressure. A safer instrument for your job.

608 Single Input Manometer

The 608BT Digital Manometer with Bluetooth® Communication measures pressure or vacuum in four units of measure.

Single input manometer with +/-150mBar range. Four units of measure: inH2O, mbar, KPa, PSI and mmH20. Backlight display.

608 Single Input Manometer

The 608 digital manometer measures pressure or vacuum in four units of measure.

Single input manometer with +/-150mBar range. Four units of measure: inH2O, mbar, KPa, PSI and mmH20. Backlight display.

621 Dual Input Differential Manometer

Dual Differential Input Manometer with ±120 inH2O range and 0.001 in H2O resolution.

The 621 features Seven units of pressure: inH2O, mbar, KPa, PSI, mmH2O, mmHg, inHg, Auto power off, Backlight display, Zero function, Trim mode to stabilize readings.

623 Dual Input High Resolution Digital Manometer

The high accuracy, high resolution TPI 623 is a hand held Dual Input Digital Manometer with superior three decimal place resolution.

Dual Differential Input Manometer with ±5 psi range and 0.001 psi resolution.

Seven units of pressure: inH2O, mbar, KPa, PSI, mH2O, mmHg, inHg, Auto power off, Record/Min/Max, Backlight display, Zero function, Trim mode to stabilize readings.

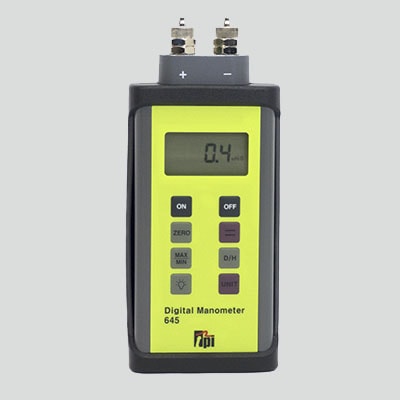

645 Dual Input Differential Manometer

Dual Input Differential Manometer with ± 29 psi range and 0.1 psi resolution.

Seven units of pressure: inH2O, mbar, KPa, PSI, mH2O, mmHg, inHg, Auto power off, Record/Min/Max, Backlight display, Zero function, Trim mode to stabilize readings.

645NPT Front WP sm

Dual Input Differential Manometer with ± 29 psi range and 0.1 psi resolution.

Seven units of pressure: inH2O, mbar, KPa, PSI, mH2O, mmHg, inHg, Auto power off, Record/Min/Max, Backlight display, Zero function, Trim mode to stabilize readings.

665 Dual Input Differential Manometer

Dual Input Differential Manometer with ±100 psi range and 0.01 psi resolution.

Data logging with optional A665 software and docking station. Seven units of pressure: inH2O, mbar, KPa, PSI, mH2O, mmHg, inHg, Auto power off, Record/Min/Max, Backlight display, Zero function, Trim mode to stabilize readings. ¼” NPT fittings.

Dual Input Differential Manometer with ±100 psi range and 0.01 psi resolution.

Can be used in non-corrosive liquid applications. Data logging with optional A665 software and docking station. Seven units of pressure: inH2O, mbar, KPa, PSI, mH2O, mmHg, inHg, Auto power off, Record/Min/Max, Backlight display, Zero function, Trim mode to stabilize readings. ¼” NPT fittings.
