DC710 Flue Gas Analyser. When Combined with Smartphone & App: Easy, Affordable & Remote Operation!
- Use for BS7967 remotely via Bluetooth using your Apple or Android Smartphone or tablet. EN50379 compliant

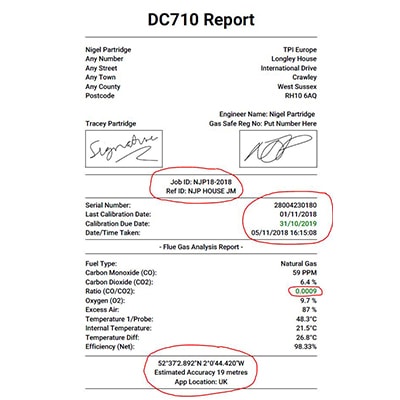

- The free TPI View app provides on-site reports which can be stored in Job Management and/or emailed without the need for paper or printers.
- Each report created is Colour Coded “In/Out of Spec” with GPS Location and Time Date Stamp
- 24-Hour real-time clock for accurate documentation.
- Powerful magnetic and/or hook mounting.
- Durable, rugged and sealed housing.
- New! Integrated with the Expert Trades Office app

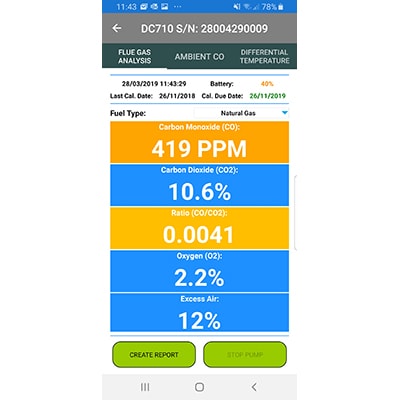

Easy-to-Use Smartphone App
TPI View Smartphone app for iOS and Android allows easy documentation that you can share with your customer. Reduce paperwork and save time! Learn More
DC710C1 Kit: £350 exc. VAT
Kit includes DC710 Unit, USB Charger, A770 Combustion Flue Probe w/Temperature & Carry Case with shoulder strap.
DC710C2 Kit: £425 exc. VAT
Kit includes DC710 Unit, SP620 Differential Pressure Meter Smart Probe, USB Charger, A770 Combustion Flue Probe w/Temperature & Carry Case with shoulder strap.
CPA1 Probe Kit
£85.00
DC710 Flue Gas Analyser Accessories
CK21M Pipe Clamp Probe
£15.00
A796 Complete Water Trap
£20.00
A773 Oil Filter
£11.00
A768 Carrying Case
£16.00
Click to view or download product PDFs
| DC710 Flue Gas Analyser Specifications | |
|---|---|
| Carbon Monoxide (CO) Range | 0 to 10,000ppm; +/-5ppm or 5% of reading whichever is greater |
| Oxygen (O2) Range | 0 to 25%; +/-0.3% O2 |
| Temperature Range | -50°C to 1000°C (-58°F to 1832°F); +/- 0.3% of reading +1°C (+/-0.3% of reading +2°F) |
| Pre-programmed Fuels | Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Coke, Butane, Wood, Bagasse |
| Battery Type | Rechargeable Li-ion (3.7V/2600mA) |
| Battery Life | >6 hours typical |
| Charger Input | USB Connection |
| Operating Temperature | -10°C to 50°C (-14°F to 122°F) |
| Dimensions (W x L x D) | 150mm x 100mm x 58mm (5.9” x 3.9” x 2.3”) |
| Weight | 490g (1.1 lb) |
| Gas Sensor Type | Electrochemical field replaceable smart sensors (O2 and CO) |
DC710 Features:
Flue Gas Analysis:

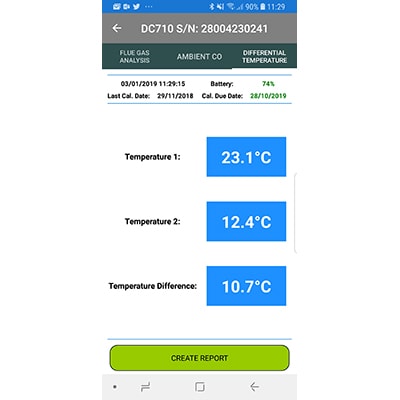

- Measure CO, and Temperature Differential
- Calculate CO2, CO Air Free, Excess Air, and Combustion Efficiency
Ranges: Gases
- Oxygen (O2): 0~25%; +/-0.3% accuracy
- Carbon Monoxide (CO): 0~10,000ppm; +/- 5ppm or 5% of reading whichever is greater accuracy
Ranges: Temperature
- -50°C to 1000°C (-58°F to 1832°F); +/- 0.3% of reading +1°C (+/-0.3% of reading +2°F)
TPI View App
Smart phone app allows easy documentation that you can share with your customer. Reduce paperwork and save time!
Allows gas engineers using their smartphone to interact with TPI’s DC710 FGA, SP341 Thermocouple Thermometer, and SP620 and 608BT Manometers. Job Management allows you to create multiple JOBS and attach multiple REPORTS to each Job! Give each report a different reference/name; save to an existing JOB or create a NEW one! Learn More
Note: Smartphone NOT included
