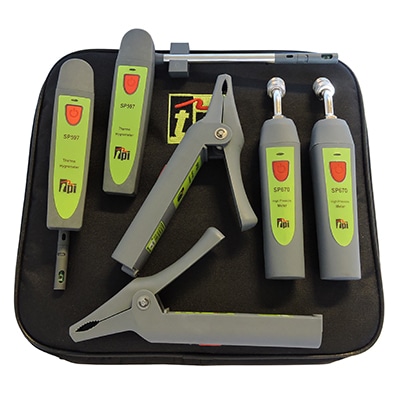

SPCHKITDLX Refrigeration Test Kit c/w 2 each SP323 Wireless Clamp Type Temperature Probes, 2 each SP670 Wireless High Pressure Probes & 2 each Wireless SP597 Humidity & Temperature Probes in a carry case. Use for testing of Refrigeration, Air Conditioning & Heat Pump Systems in conjunction with the FREE, subscription FREE, TPI View app for reporting and calculation of Superheat & Subcool and Heat & Cool.

SP597 Humidity / Temperature Probe
SP670 Smart Pressure Probe
SP323 Clamp Type Temperature Probe Pair
SP323 Clamp Type Temperature Probe
SP597 Humidity / Temperature Probe
SP597 Humidity / Temperature Probe
SP597 Humidity / Temperature Probe
SP670 High Pressure Probe
SP597 Humidity / Temperature ProbeSP670 Smart Pressure ProbeSP323 Clamp Type Temperature Probe PairSP323 Clamp Type Temperature ProbeSP597 Humidity / Temperature ProbeSP597 Humidity / Temperature ProbeSP597 Humidity / Temperature ProbeSP670 High Pressure Probe

Includes: 2 SP323, 2 SP597, 2 SP670 and A931 Case. Use with free TPI View app!

SP323 Clamp Type Temperature Probe
Features:

  • Temperature Range: -40 to +185 °F (-40 to +85 °C)
  • Clamp Range: 1/4 inch to 1 1/2 inch (6mm to 38mm)
  • Connect to Smart Device and use with the TPI View App
  • Temperature measurement on air conditioning, heating, and refrigeration systems
  • View “LIVE” Temperature Readings and instantly Save, e-mail and/or Print them
  • Save, e-mail and/or Print “Differential” Temperature readings with one or two SP323 probes
  • Perform, Save, e-mail and/or Print differential temperature readings such as Radiator Balancing or Flow & Return on Boilers or Heat Pumps
  • Remote Data Logging Function with Multiple instruments logging at the same time
  • Store ALL GPS tagged Test Results within the TPI View Job Management
  • Use in conjunction with the SP670 high pressure smart probe to perform Superheat and Subcooling measurements

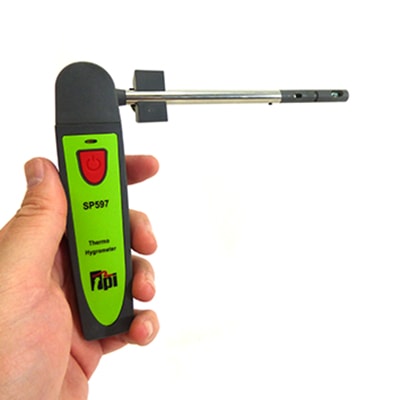

SP597 Humidity / Temperature Probe
Features:

  • Humidity Range: 0 to 100% RH
  • Temperature Range: -4 to +140 °F (-20 to +60 °C)
  • Probe rotates for storage / use.
  • Depth adjustable probe magnet for attachment to ducts
  • Connect to Smart Device and use with the TPI View App
  • View “LIVE” Temperature & Humidity Readings
  • Save, e-mail and/or Print Temperature & Humidity readings rooms & ducts
  • Ideal for checking air conditioning system humidifiers
  • Remote Data Logging Function with Multiple instruments logging at the same time
  • Store ALL GPS tagged Test Results within the TPI View Job Management
  • Use to calculate Wet bulb, Dewpoint, and Enthalpy

SP670 High Pressure Probe
Features:

  • Pressure Range: -14.7 psi to 870 psi (-1 bar to 60 bar)
  • Connection Type: 7/16″-20 UNF / ¼” SAE angled for connections in tight spaces
  • Over pressure protected to 1000 psi
  • Adjustable Schrader valve depressor for use on worn valves
  • Replaceable Schrader valve depressor
  • View “LIVE” High Pressure readings
  • Save, e-mail and/or Print Pressure readings with GPS tagged Date & Time on Report
  • Ideal for checking for compressor leaks
  • Store ALL GPS tagged Test Results within the TPI View Job Management
  • Use in conjunction with the SP323 temperature clamp smart probe to perform Superheat and Subcooling measurements

£525.00
RRP exc. VAT

£525.00

Where to Buy TPI Products
SP323 Clamp Type Temperature Probe Specifications
Temperature Range-40⁰F to 185⁰F (-40⁰C to 85⁰C)
Clamp Pipe Size1/4 inch to 1 1/2 inch (6mm to 38mm)
Resolution0.1⁰F / 0.1⁰C
Accuracy32⁰F to 185⁰F (0⁰C to 85⁰C) = +/- 0.9⁰F (+/- 0.5⁰C)

Data Logging10,000 readings in 1 sec to 59 min 59 sec intervals
Battery lifeApproximately 170 hours
Battery typeAAA x 3 alkaline
Operating temperature-4 °F ~ 140 °F (-20 °C ~ 60 °C)
Storage temperature0 °C ~ 50 °C ( 32 °F ~ 122 °F )
Humidity0 ~ 80 %RH
Weight5.64oz (160g)
Bluetooth5.0 (350 foot range depending on obstacles)

SP597 Humidity / Temperature Probe Specifications
HumidityRange0%RH to 100%RH
Resolution0.1%RH
Accuracy+/-3%RH (20%RH to 80%RH) at 25⁰C
+/-5%RH (80%RH) at 25⁰C
TemperatureRange-4⁰F to 140⁰F (-20⁰C to 60⁰C)
Resolution0.1⁰F / 0.1⁰C
Accuracy32⁰F to 140⁰F (0⁰C to 60⁰C) = +/- 0.1⁰F (+/- 0.5⁰C)

GeneralData Logging5,000 readings in 1 sec to 59 min 59 sec intervals
Battery LifeApproximately 200 hours
Battery TypeAAA x 3 alkaline
Operating Temperature32 °F ~ 122 °F (0 °C ~ 50 °C)
Storage Temperature-4 °F ~ 140 °F (-20 °C ~ 60 °C)
Operating Humidity0 ~ 80 %RH
Weight4.52oz (128g)
Bluetooth5.0 (350 foot range depending on obstacles)

SP670 High Pressure Probe Specifications
Pressure Range-14.7 psi to 870 psi (-1 bar to 60 bar)
Over Pressure Range1000 psi (70 bar)
Input Connection7/16"-20 UNF / ¼" SAE
Resolution0.1 psi / 0.01 bar
Accuracy+/- 0.5% of full scale
Battery lifeApproximately 160 hours
Battery typeAAA x 3 alkaline
Operating temperature32 °F to 122 °F (0 °C to 50 °C)
Storage temperature-4 °F to 140 °F (-20 °C to 60 °C)
Humidity0 to 80 %RH
Weight5.64oz (160g)
Bluetooth5.0 (350 foot range depending on obstacles)
