Hotwire air velocity probe with flip up telescopic sensor wand. Use with TPI Smart Probe App to display air velocity and air flow. Available Spring 2018!

SP565 Thermal Anemometer

Features & Benefits:

  • Measure air velocity and temperature simultaneously
  • Communicate with Android Smart Phone using Bluetooth LE and TPI App
  • Record minimum, maximum & average
  • Multiple measuring units: m/s, km/h, ft/min, knots, mile/h

Applications:

  • Air duct analysis to balance commercial and residential HVAC systems
  • Fume hoods
  • Floor registers
  • Exhaust grills

Ranges:

  • Air Velocity: 40 to 3900 fpm; 0.2 to 20 m/s
  • Temperature: -5°F to 175°F (-20°C to 80°C)

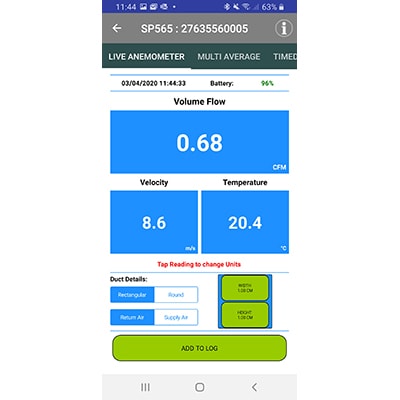

TPI Smart Probe App
Use the TPI app to display real time readings in numeric and graph format. Save readings to a CSV file. The app allows the customer’s information to be stored and a report sent via email!

£75.00 RRP exc. VAT

Where to Buy TPI Products

Register Your Interest

Thank you for your interest in the TPI SP565 Thermal Anemometer. Please fill out the form below and we’ll let you know when the SP565 will be available for purchase.

TPI Europe Sales & Distribution
Please provide model number(s), type of instrument(s), or specific inquiries
Sending

Click to view or download product PDFs

SP565 Data Sheet

SP565 Smart Probe Air Velocity Meter Specifications
Air Velocity Measurement Range-40 ft/min to 3900 ft/min (0.2 m/s to 20 m/s)
Air Velocity Accuracy+/- (5% of rdg + 10 digits) or +/- (1% FS + 10 digits)
Resolution1 ft/min / 0.01 m/s
Temperature Measurement Range-4⁰F to 140⁰F (-20⁰C to 60⁰C)
Temperature Accuracy+/- 1⁰F (0.5⁰C) (32⁰F to 113⁰F / 0⁰C to 45⁰C )
+/- 2⁰F (1⁰C) (<32⁰F (0⁰C) and >113⁰F (45⁰C)
Units of Measurem/s, km/s, ft/min, miles/hr, knots/hr
Operating Temperature-4⁰F to 122⁰F (-20⁰C to 50⁰C)
CommunicationBluetooth version 4.2 (Use with TPI Smart Probe App)
Battery typeAAA x 3 (4.5V)
Battery Life60 hours typical
CFM CalculationPerformed via TPI Smart Probe App
