9043 Smart Wireless Three Channel Vibration & Bearing Wear Analyser & Data Collector
- Wireless or USB-C Charging
- Wireless communication to Android Tablet allowing readings to be viewed from a safe distance with analyser behind safety barrier
- True simultaneous 3 channel capture
- Standard BNC connectors
- Rugged design – IP67 rating
- Compatible with Triaxial Accelerometer
- Compatible with Proximity Probes
- Data transfer by USB-C where Bluetooth is not permitted
- Supplied in protective, magnetic, rubber boot for hands free use
- 24 bit A/D Converter
- DC to 30kHz Frequency Range
- 100 to 51,200 Line Resolution
- 108dB Dynamic Range
Works with the FREE, subscription FREE Ultra III Android Tablet app
- 2/10Hz to 1kHz ISO standard for assessing Unbalance, Misalignment or Looseness
- 1kHz to 10kHz BDU range for identification of Bearing Condition
- High resolution (0.2 Hz) frequency spectra from 2 Hz to 10 kHz
- Single & Dual Plane Balancing
- No tachometer (4-run) Balancing
- Screen Cursors – Single, Harmonic, Moving Harmonic, Sideband, and Time/Frequency for waveform
- Demod & Coast Down
- Phase & Orbit Plots
- Gap Voltage Display

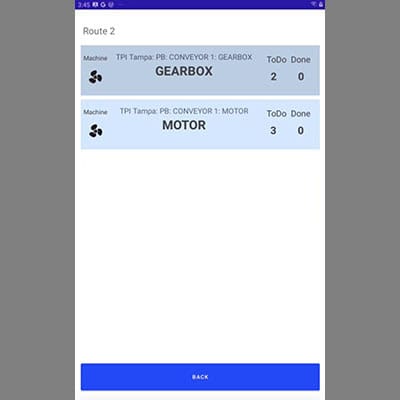

- Download Routes with Inspection points
- Clear, easy-to-read and navigate touchscreen
The 9043 is a 3-channel vibration analyser and data collector with 2 plane balancing capability. It features true simultaneous 3 channel capture for versatility, 24-bit A/D converter for high resolution, and wireless communication to an Android tablet running the TPI Ultra III app.
Used in conjunction with Ultra III software the 9043 features include:
- 2/10Hz to 1kHz ISO standard for assessing Unbalance, Misalignment or Looseness
- 1kHz to 10kHz BDU range for identification of Bearing Condition
- High resolution (0.2 Hz) frequency spectra from 2 Hz to 10 kHz
- Single and Dual Plane Balancing as well as No tachometer (4-run) Balancing
- Screen Cursors – Single, Harmonic, Moving Harmonic, Sideband, and Time/Frequency for waveform
- Demod & Coast Down, Phase & Orbit Plots, Gap Voltage Display
- Download Routes with Inspection points
- Clear, easy-to-read and navigate touchscreen
- Proximity Probe Compatible
- Triaxial Sensor Compatible
- Wireless or USB-C Charging
- Long Battery Life – 15 Hours Continuous
- Data transfer by USB-C where Bluetooth is not permitted
- Supplied in protective, magnetic, rubber boot for hands free use.
- DC to 30kHz Frequency Range
- 100 to 51,200 Line Resolution
- 108dB Dynamic Range
