DC710C1 Flue Gas Analyser Kit + FREE 725L Gas Sniffer

£410.00

Exclusive specials for HVP Gold Membership: DC710C1 Flue Gas Analyser Kit includes DC710 Unit, Charger, A770 Probe & Carry Case. PLUS free 725L Gas Sniffer! When Combined with Smartphone App: Easy, Affordable & Remote Operation!

In stock

SKU: DC710C1HVP Category: Tags: , , ,

Description

  • Kit includes DC710 Unit, USB Charger, A770 Combustion Flue Probe w/Temperature & Carry Case. PLUS free 725L Gas Sniffer (a £40.00 value!)

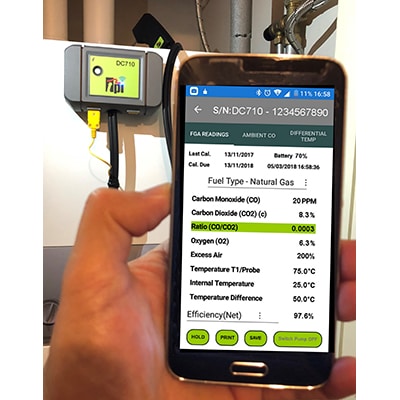

  • Use for BS7967 remotely via Bluetooth using your Apple or Android Smartphone or tablet.
  • The free TPI View app provides on-site reports which can be stored in Job Management and/or emailed without the need for paper or printers.
  • Each report created is Colour Coded “In/Out of Spec” with GPS Location and Time Date Stamp
  • 24-Hour real-time clock for accurate documentation.
  • Powerful magnetic and/or hook mounting.
  • Durable, rugged and sealed housing.

Try it Risk Free!

Documentation

DC710 Data Sheet

DC710 Manual

Specifications

DC710 Flue Gas Analyser Specifications
Carbon Monoxide (CO) Range0 to 10,000ppm; +/-5ppm or 5% of reading whichever is greater
Oxygen (O2) Range0 to 25%; +/-0.3% O2
Temperature Range-50°C to 1000°C (-58°F to 1832°F);
+/- 0.3% of reading +1°C (+/-0.3% of reading +2°F)
Pre-programmed FuelsNatural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Coke, Butane, Wood, Bagasse
Battery TypeRechargeable Li-ion (3.7V/2600mA)
Battery Life>6 hours typical
Charger InputUSB Connection
Operating Temperature-10°C to 50°C (-14°F to 122°F)
Dimensions (W x L x D)150mm x 100mm x 58mm (5.9” x 3.9” x 2.3”)
Weight490g (1.1 lb)
Gas Sensor TypeElectrochemical field replaceable smart sensors (O2 and CO)
Wireless CommunicationBluetooth LE (BLE)

Videos




Testimonials

Customer testimonial from Andrew Tyler, Crawley Gas Engineer
https://www.facebook.com/crawley.gas.engineer/
http://crawleygasengineer.co.uk/
