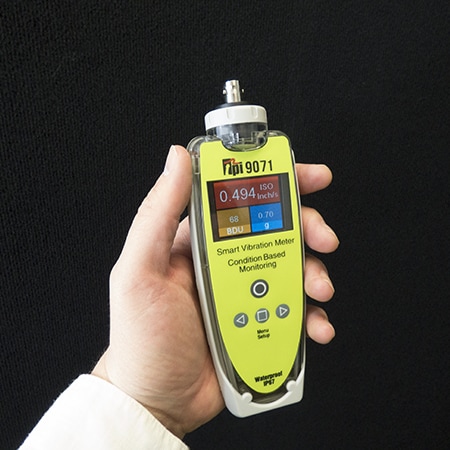

The TPI 9071 is a simple, easy to use, low cost vibration meter. Record, analyse and display vibration signals at the push of a button.

9071 Smart Vibration Meter BNC Cable Accelerometer With Magnet
  • Built-in ISO Alarms
  • Find machine faults before they stop your machine
  • Increase productivity and lower maintenance costs
  • Full Color LED Display
  • Collect data
  • Standard Cable mounted accelerometer with magnet
  • ISO built-in Alarms
  • Easily identify bearing problems with BDU Reading
  • Easily identify problems with built-in band filters:
    1X (unbalance)
    2X (misalignment)
    3X (looseness)
  • 800 line FFT (spectrum)
  • Ruggedized IP67 case
  • 3-year Limited Warranty
£495.00 RRP exc. VAT

ANALYZE • INTERPRET • SAVE
Vibration analysis at the touch of a button!

The TPI 9071 analyzes & interprets readings: ISO machine alarms and BDU reading indicate overall machine and bearing condition; clear picture of machine problems detects imbalance, misalignment and looseness; 800-line spectrum with zoom and cursor to identify complex issues.

Collect and store test data. Storage space of 10 memory blocks with 20 readings per block available. Stored readings can be displayed for analysis.

 Model 9071 Specifications
Size H 7.95″ W 2.36″ 200 mm x 60mm x 26mm
Weight 9.8oz (280g)(not including magnet)
Environmental * Water: IP67 Waterproof
* Operating: 32°F to 122°F (0°C to 50°C)
* Storage: -4°F to 158°F (-20°C to 70°C)
Power Supply 2xAA batteries
Battery Life Approximately 50 hours of normal use
Frequency Ranges 2/10Hz – 1kHz ISO
2Hz – 10kHz Total g
1kHz – 10kHz Bearing Analysis
Frequency Resolution 100 / 800 lines
Displayed Amplitude Units Acceleration in g
Velocity in inches per second or mm per second
Bearing Damage in BDU
Displayed Frequency Units Hz, CPM or RPM
Input Range +/- 50 g (with supplied accelerometer)
Dynamic Range 72 dB (0.05g resolution)
Auto set up of VA bands Yes
Measurement Storage 10 blocks / 20 readings per block
Accelerometer Connection BNC connector cable with removable magnet (1mV/g – 10,000mV/g)
Reading Storage 10 blocks/ 20 readings per block
Standard Accessories A9012 IEPE accelerometer with cable
A9073 magnet
A9074 Soft pouch
Optional Accessories A9086 Protective boot with magnets

The 9071 comes complete with the following accessories:

  • 9071 Instrument
  • A9012 IEPE accelerometer with cable
  • A9073 magnet
  • A9074 Soft pouch
  • Instruction Manual
  • 2x AA batteries

Optional Accessories:

  • A9086 Protective boot with magnets

9070

Analyzes and displays ISO vibration levels, bearing wear, unbalance, misalignment and looseness


Color coded display with alarm status (red, amber, and green)


Fully zoom-able frequency spectrum


True simultaneous three channel capture


Accelerometer connection:

Built-in with stinger

(magnet optional)


Input range:

+/- 50g


Frequency ranges:

2Hz to 1KHz

2Hz to 10KHz


Frequency resolution:

100, 800 lines FFT


Displayed frequency units:

Hertz (Hz), RPM, CPM


Displayed amplitude units:

Acceleration in g

Velocity in mm/s or inches/s


Dynamic range:

72dB


User interface:

Keypad


Environmental rating:

IP67 Waterproof


Operating temperature:

32ºF to 122ºF

(0ºC to 50ºC)


Power supply:

AA Batteries (2)


Battery life:

50 hours typical


Size:

8” x 2.4” x 1.3”

(203mm x 61mm x 33mm)


Weight (unit only):

9.8oz (280g)

9071

Analyzes and displays ISO vibration levels, bearing wear, unbalance, misalignment and looseness


Color coded display with alarm status (red, amber, and green)


Fully zoom-able frequency spectrum


True simultaneous three channel capture


Accelerometer connection:

BNC, uses IEPE accelerometers


Input range:

+/- 50g


Frequency ranges:

2Hz to 1KHz

2Hz to 10KHz


Frequency resolution:

100, 800, lines FFT


Displayed frequency units:

Hertz (Hz), RPM, CPM


Displayed amplitude units:

Acceleration in g

Velocity in mm/s or inches/s


Dynamic range:

72dB


User interface:

Keypad


Environmental rating:

IP67 Waterproof


Operating temperature:

32ºF to 122ºF

(0ºC to 50ºC)


Power supply:

AA Batteries (2)


Battery life:

50 hours typical


Size:

8” x 2.4” x 1.3”

(203mm x 61mm x 33mm)


Weight (unit only):

9.8oz (280g)

This Model

9080

Analyzes and displays ISO vibration levels, bearing wear, unbalance, misalignment and looseness


Color coded display with alarm status (red, amber, and green)


Fully zoom-able frequency spectrum


True simultaneous three channel capture


VibTrend software for data trending and analysis


Automatic reporting and email generation of

alerts for any parameter


Bluetooth enabled


Bluetooth headphones (optional, p/n A9080)


Strobe accessory (optional, p/n A9082)


Accelerometer connection:

BNC, uses IEPE accelerometers


Input range:

+/- 50g


Frequency ranges:

2Hz to 1KHz

2Hz to 10KHz


Frequency resolution:

100, 800, lines FFT


Displayed frequency units:

Hertz (Hz), RPM, CPM


Displayed amplitude units:

Acceleration in g

Velocity in mm/s or inches/s

Displacement in microns or mils


Dynamic range:

96dB


User interface:

Keypad


Environmental rating:

IP67 Waterproof


Operating temperature:

32ºF to 122ºF

(0ºC to 50ºC)


Power supply:

AA Batteries (2)


Battery life:

50 hours typical


Size:

8” x 2.4” x 1.3”

(203mm x 61mm x 33mm)


Weight (unit only):

9.8oz (280g)

9041 Ultra II

Analyzes and displays ISO vibration levels, bearing wear, unbalance, misalignment and looseness


Color coded display with alarm status (red, amber, and green)


Fully zoom-able frequency spectrum


True simultaneous three channel capture


USB computer interface


C-Trend software to store analyze and report vibration, lube, and inspection parameters (temperature, oil pressures, run hours, etc.)


Automatic reporting and email generation of

alerts for any parameter


Strobe accessory (optional, p/n A9082)


Optional RFID asset management

(RFID tags p/n A9007 required)


Built-in single plane balancing


Optional dual plane balancing with additional

accelerometer


Includes laser tachometer for balancing


Accelerometer connection:

BNC, uses IEPE accelerometers


Input range:

+/- 50g


Frequency ranges:

2Hz to 1KHz

2Hz to 10KHz


Frequency resolution:
400, 800, 1600, 3200, 6400,

12,800, 25,600, 51,200 lines FFT


Displayed frequency units:

Hertz (Hz), RPM, CPM


Displayed amplitude units:

Acceleration in g

Velocity in mm/s or inches/s

Displacement in microns or mils


Dynamic range:

96dB


User interface:

Numeric keypad and touch screen


Environmental rating:

IP68 Waterproof


Operating temperature:

-22ºF to 149ºF

(-30ºC to 65ºC)


Power supply:

Rechargeable battery

(charger included)


Battery life:

20 hours typical


Size:

8.7” x 3.7” x 1.8”

(220mm x 95mm x 45mm)


Weight (unit only):

1.1lb (500g)
