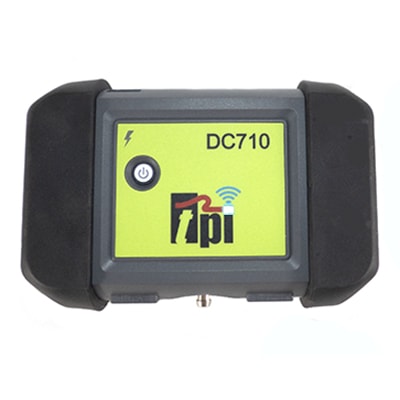

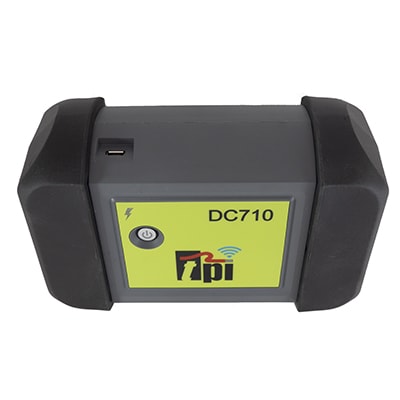

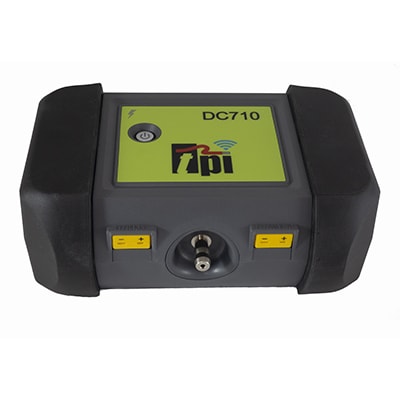

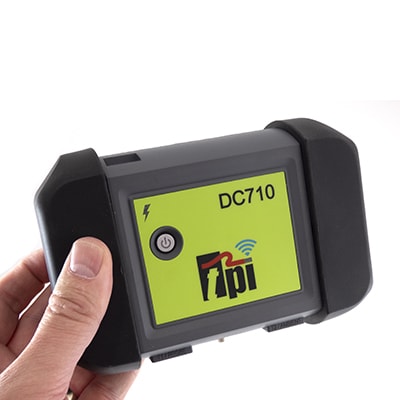

DC710C2 Flue Gas Analyser Kit

£425.00

DC710C1 Flue Gas Analyser Kit: includes DC710 Unit, SP620 Differential Pressure Meter Smart Probe, Charger, A770 Probe & Carry Case. When Combined with Smartphone App: Easy, Affordable & Remote Operation!

In stock

Description

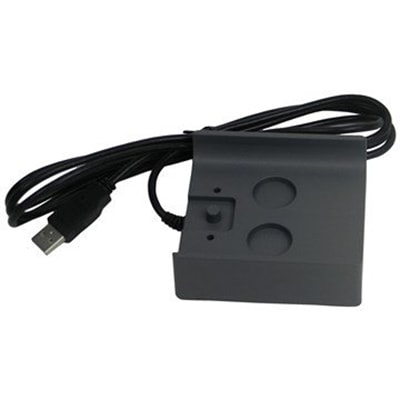

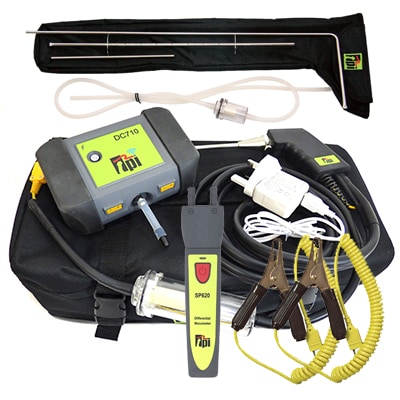

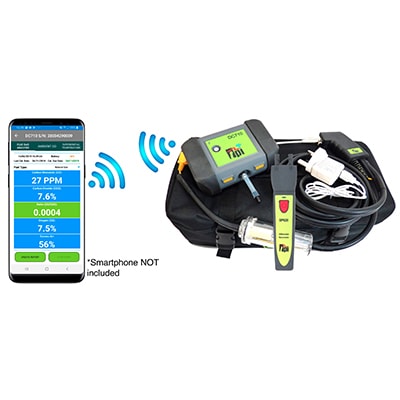

  • Kit includes DC710 Unit, SP620 Differential Pressure Meter Smart Probe, USB Charger, A770 Combustion Flue Probe w/Temperature & Carry Case.
  • Operate remotely via Bluetooth using your Smartphone or tablet and the free TPI app. No need for long probe hoses – you can be at the control center with your smartphone, while the DC710 does the work at the stack.
  • The free TPI app provides on-site reports which can instantly be emailed and stored without the need for paper or printers.
  • 24-Hour real-time clock for accurate documentation.
  • Powerful magnetic and/or hook mounting.
  • Durable, rugged and sealed housing.

Documentation

Documentation

DC710 Data Sheet

DC710 Manual

Specifications

DC710 Flue Gas Analyser Specifications
Carbon Monoxide (CO) Range0 to 10,000ppm; +/-5ppm or 5% of reading whichever is greater
Oxygen (O2) Range0 to 25%; +/-0.3% O2
Temperature Range-50°C to 1000°C (-58°F to 1832°F);
+/- 0.3% of reading +1°C (+/-0.3% of reading +2°F)
Pre-programmed FuelsNatural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Coke, Butane, Wood, Bagasse
Battery TypeRechargeable Li-ion (3.7V/2600mA)
Battery Life>6 hours typical
Charger InputUSB Connection
Operating Temperature-10°C to 50°C (-14°F to 122°F)
Dimensions (W x L x D)150mm x 100mm x 58mm (5.9” x 3.9” x 2.3”)
Weight490g (1.1 lb)
Gas Sensor TypeElectrochemical field replaceable smart sensors (O2 and CO)

SP620 Smart Probe Differential Pressure Meter Specifications
Input TypeDual input differential
Connection Type1/4 inch barb
Measurement Range-150 mbar to +150mbar (-60 inH2O to +60 inH2O)
Accuracy+/-0.05 mbar (0 to 1 mbar) / +/-(1.5% + 20 digits) (> 1 mbar)

+/-0.02 inH2O (0 to 1 inH2O) / +/-(1.5% + 20 digits) (> 1 inH2O)
Resolution0.01 mbar / 0.01 inH2O
Units of Measure7 Units (mbar, inH2O, kPa, PSI, mmHg, inHg, mmH2O)
Operating Temperature-20⁰C to 50⁰C (-4⁰F to 122⁰F)
CommunicationBluetooth version 4.2 (Use with TPI Smart Probe App)
Battery TypeAAA x 3
Battery Life80 hours typical
